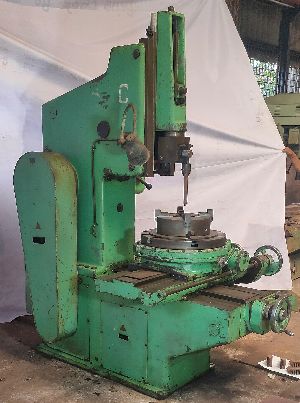

Vertical Slotting Machine

Vertical slotting machine for salestanko 7a420m

mfg year         1976

table diameter            500mm

slotter stroke   20…200mm

motor power    3kw    & 1.1kw    380 volts

strokes per minute     40…163

distance between table and slotter slides       320mm

distance between slotter and column            480mm

max. table movementlongitudinal 500 mm

lateral  400 mm

table rapid movement            longitudinal, m/min 1,8

traverse, m/min 1,8

 circular, degrees/s 3,4

            3,6kw

machine dimensions:  height 2100  xwidth 1200 x  length 2100mm

machine weight:          2200  kgapprox

additional accessories            4 jaw true chuck with 4 inside & 4 outside dogs , key way slotting tools of width5,6,8,10,12,14,16,18mm

machine is electrically connected & in full working condition located at kolhapur,maharashtra,india. electrical working trial can be given, machine is russian made heavy good build quality. it has 4 speeds for stroke travel, the table can be moved on  x, y & rotational axis manually & auto feed at different speedsforward/reverse-clockwise /anticlockwise

to see working videos search  stanko 7a420m kolhapur   on youtube

this machine is used for slotting key ways, internal & external teeth profiles on gears , machining of custom jobs of special application

interested buyer should send only whatsapp message by sending screenshot of this listing , visiting card , buyers city ,company details.on
